Other size : 78/92/115/130/137/186/220 K

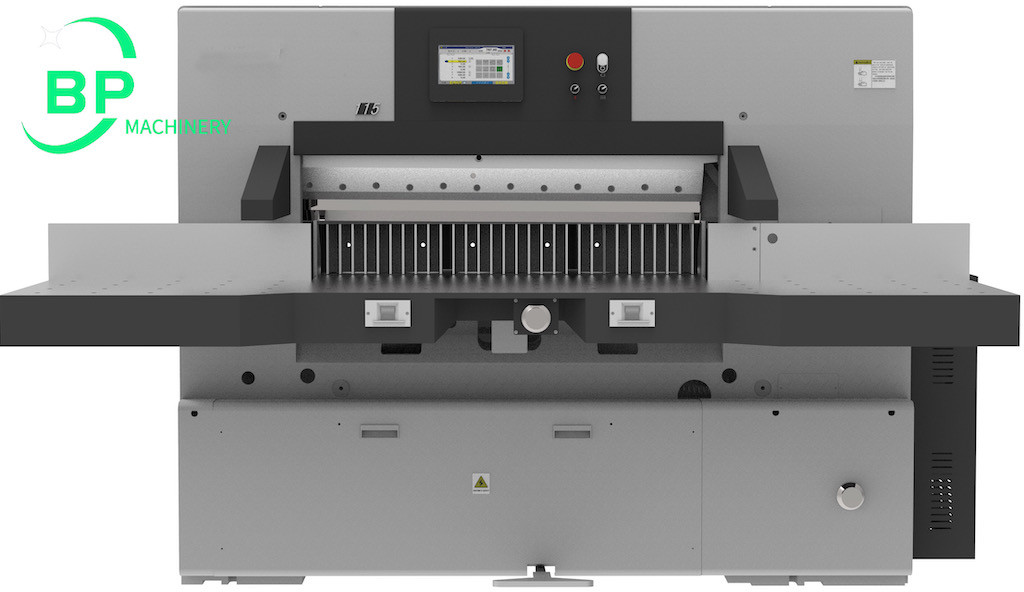

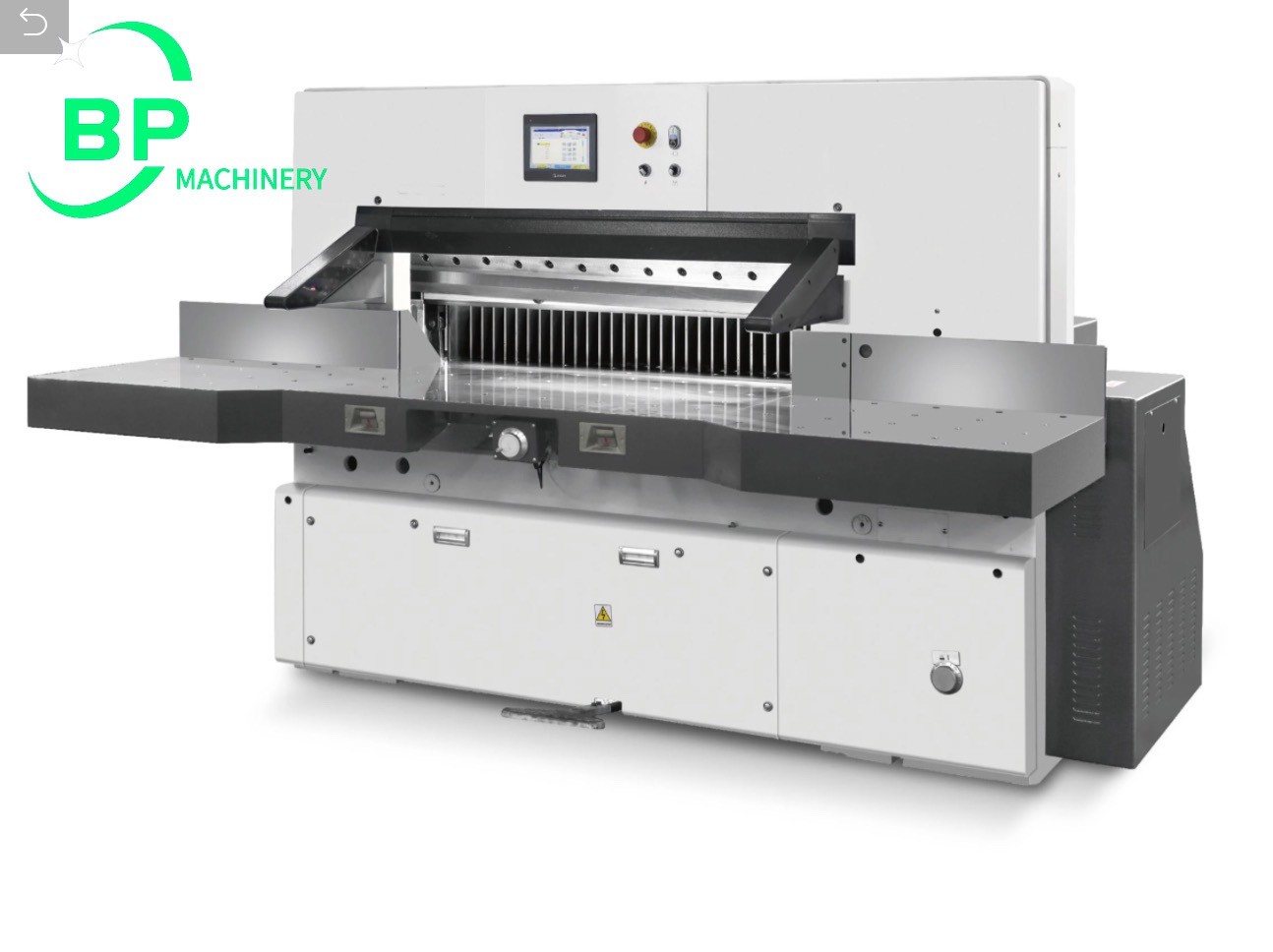

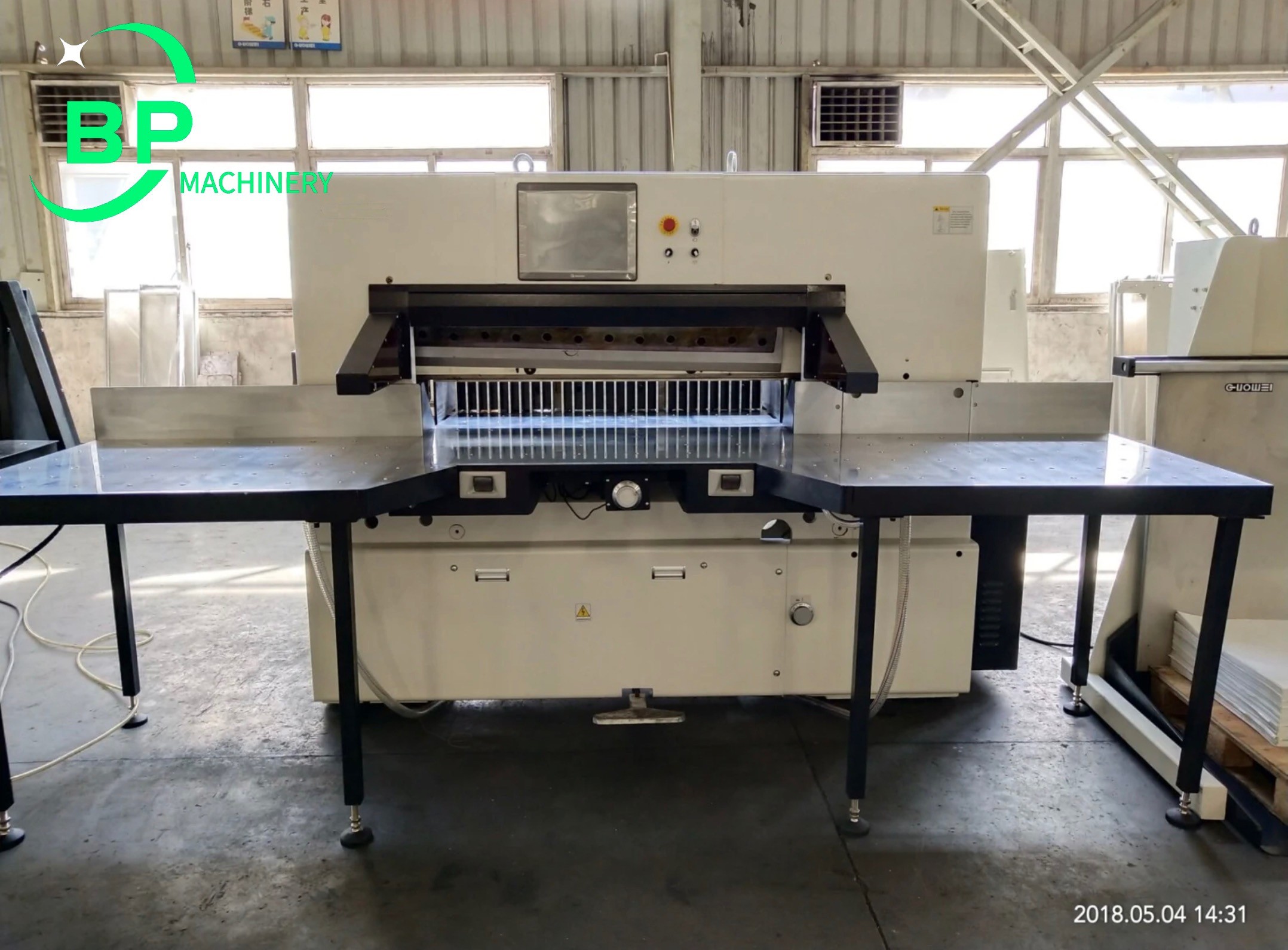

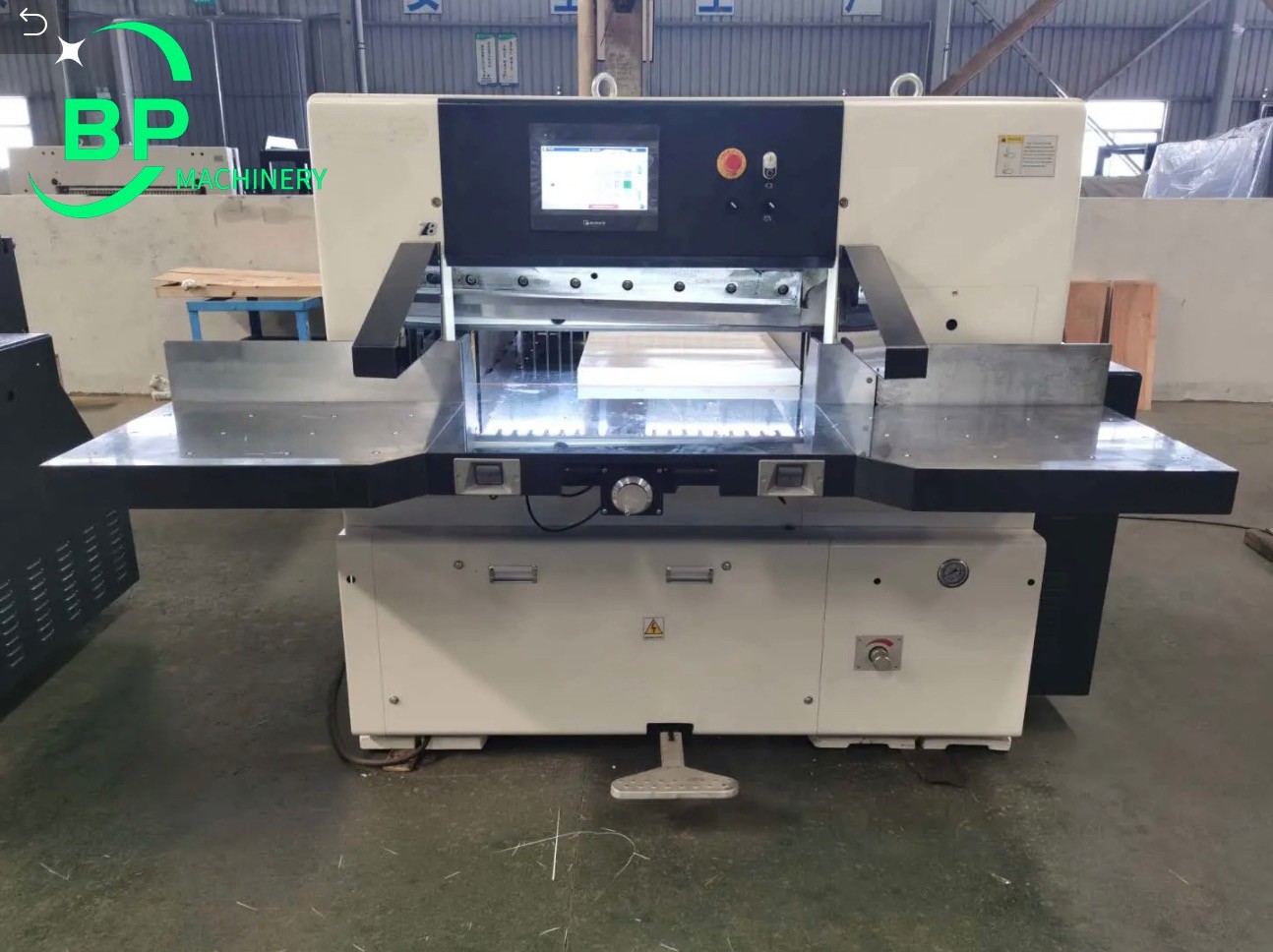

BP Machinery K serial paper cutter or paper Guillotine is very popular in China and overseas market .

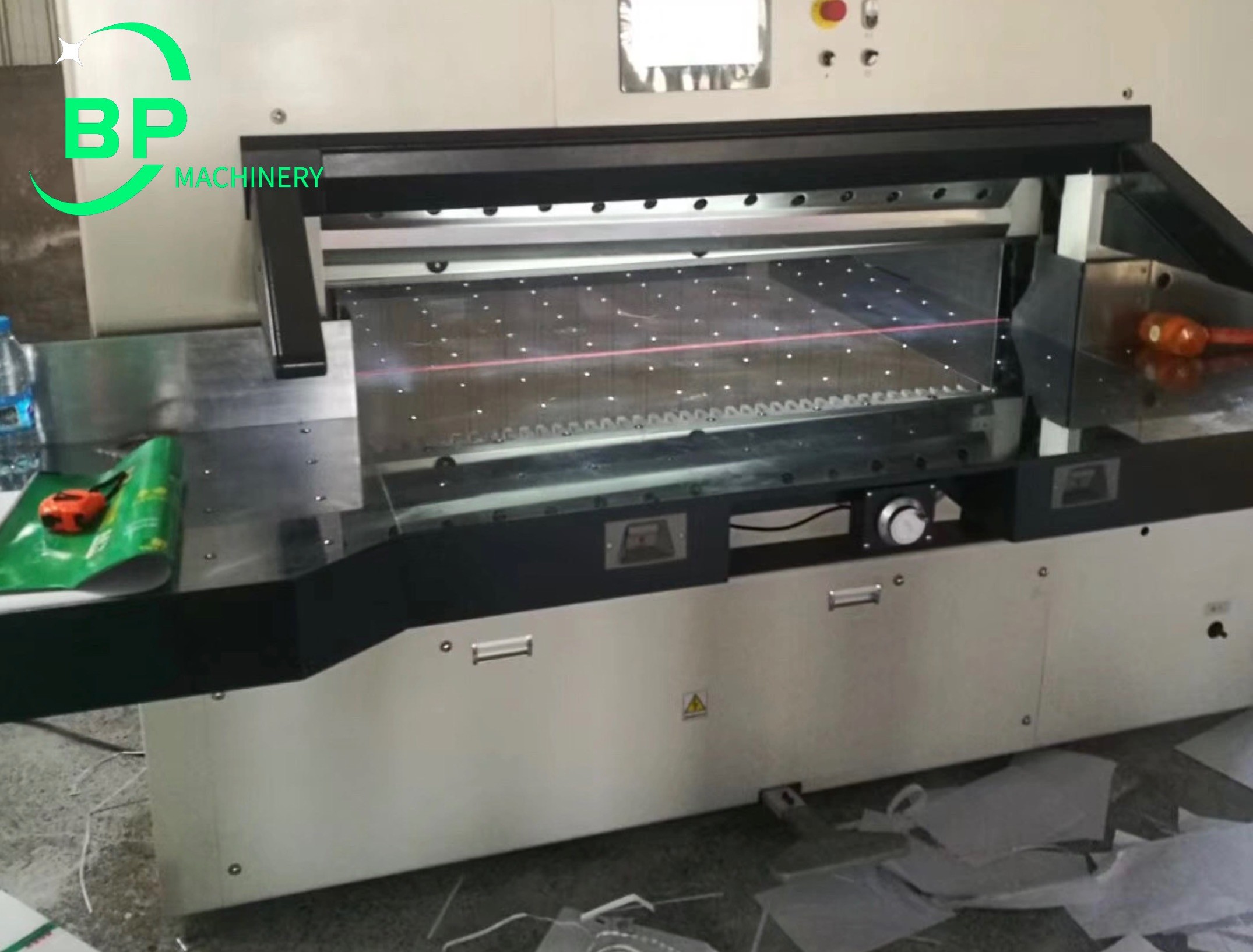

It equipped with AC digital servo controlling technology and10inches colorful touching screen, the data resolution rate is 0.01mm, has self-diagnosticfunction of troubles and displays the operating pattern, 100 program units,over 10000 different cutting positions, it can memorize, store and dynamicfollow-up. The max paper-pushing speed is 5-15m/min. It adopts Japanese hydraulic components, France, Japan and Korea electric components. Taiwan ball lead screw and linear double guide-rail. PLC control system for electric configuration. Its key parts adopt imported bearing of lowmaintenance.IR rayprotective device is more convenient for cutting with optical knife-line alignment,button operated by two hands, singlcirculation cutting device ect.
| Model / Specifications | 78 | 92 | 115 | 130 | 137 | 186 | 220 |
| Cutting width(cm) | 78 | 92 | 115 | 130 | 137 | 186 | 220 |
| Max.cutting height without assistance pressing plate(cm) | 13 | 13 | 16.5 | 13 | 16.5 | 16.5 | 16.5 |
| Max.cutting depth(cm) | 78 | 93 | 115 | 130 | 145 | 200 | 220 |
| Min cutting depth without assistance pressing plate(cm) | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| Extended length of working table(cm) | 64 | 65 | 73 | 73 | 74 | 75 | 75 |
| Height of working table(cm) | 86.5 | 86 | 89 | 86.5 | 89-92 | 89-92 | 89-92 |
| Machine width including side working table(cm) | 215 | 233 | 266 | 266 | 287 | 342 | 376 |
| Total length of working table(cm) | 178 | 198 | 226 | 241 | 259 | 327 | 355 |
| Cutting speed(r/min) | 45 | 45 | 45 | 45 | 45 | 40 | 33 |
| Max. Paper pressure(n) | 30000 | 35000 | 40000 | 40000 | 45000 | 65000 | 70000 |
| Power of main motor(kw) | 3 | 3 | 4 | 4 | 4 | 7.5 | 7.5 |
| Motor for paper feeding(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 1.00 | 1.00 | 1.20 |
| Air pump(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75X2 | 0.75*2 | 0.75*2 |
| Machine weight(kg) | 2500 | 2700 | 4000 | 3900 | 4500 | 7000 | 10200 |
| Overall dimension(cm) | 210x140x195 | 225x140x195 | 255x160x215 | 260x153x195 | 280x160x215 | 340*182*230 | 390*190*270 |
| No. | Configuration | Brand | Producing |
| 1 | Display screen+computer | WEINVIEW10inches color touch screen | Taiwan |
| 2 | Motherboard chipset | ATMTEL | America |
| 3 | Controlling PLC | Panasonic PLC | Japan |
| 4 | Drive under the knife | Flat worm reducer | Sino-US joint venture |
| 5 | Motor driver | SE Servo motor control system | Japan |
| 6 | Feed leadscrew | ABBA Ball screw | Taiwan |
| 7 | Guide-rail | ABBA High-precision linear guide | Taiwan |
| 8 | Worktable | Slotless chrome platform with air cushion | HT2500 Casting |
| 9 | Bearing | MSK Bearing | Japan |
| 10 | Sensor | OMRON | Japan |
| 11 | Switch | MACK | Taiwan |
| 12 | Air switch | LS | Korean |
| 13 | Power switch | SANLI | Taiwan |
| 14 | Locating switch | Panasonic | Japan |
| 15 | Contacts | Schneider | France |
| 16 | Host Button | Moeller | Sino-German joint venture |
| 17 | Bridge rectifier | SEP | Taiwan |
| 18 | Seals | MERKEL | Japan |
| 19 | Hydraulic Components | YUKEN | Japan |
| 20 | Hydraulic Fittings | HONDA | Japan |
| 21 | Passage control system | Relief | Italy |

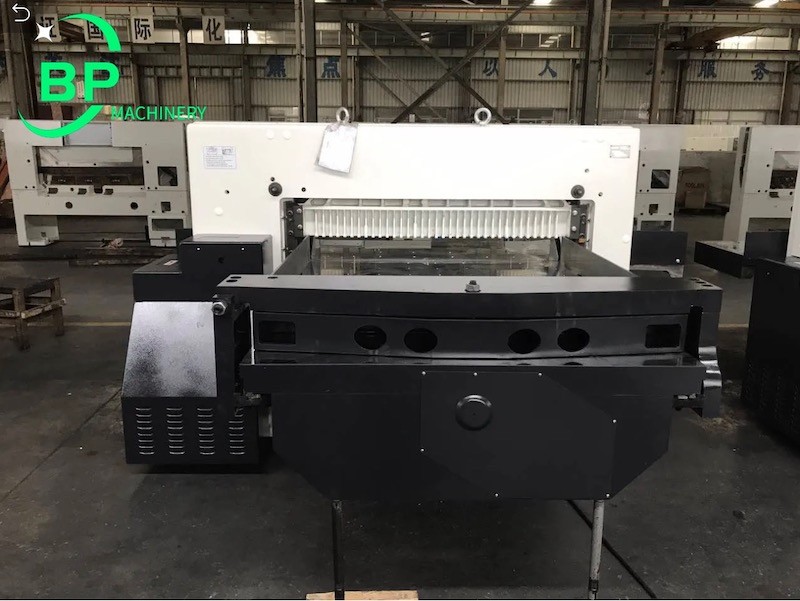

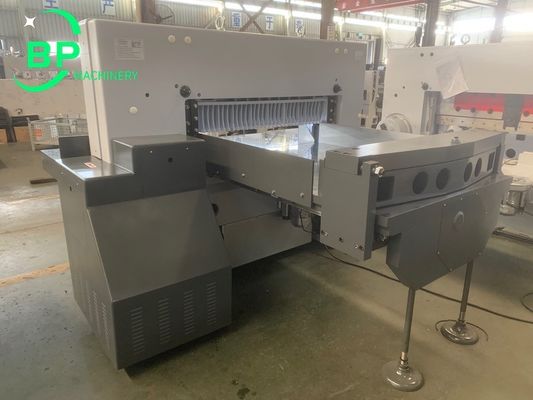

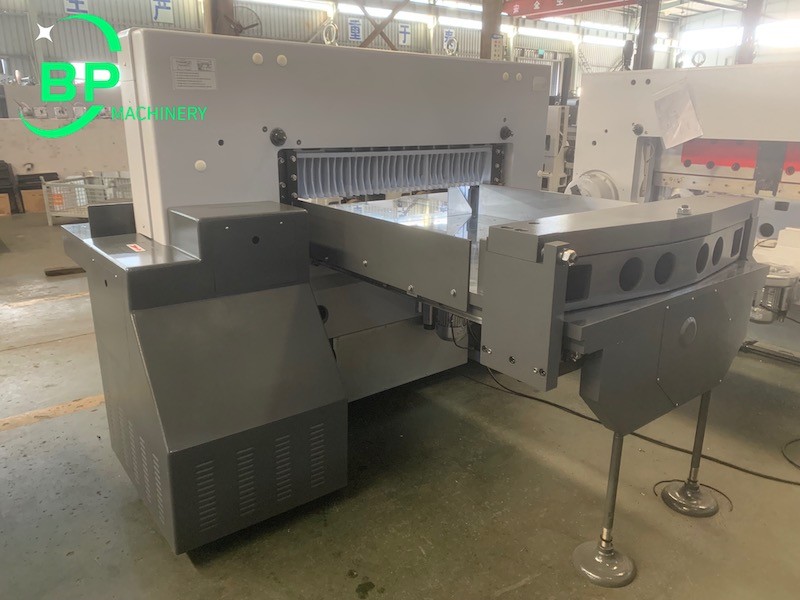

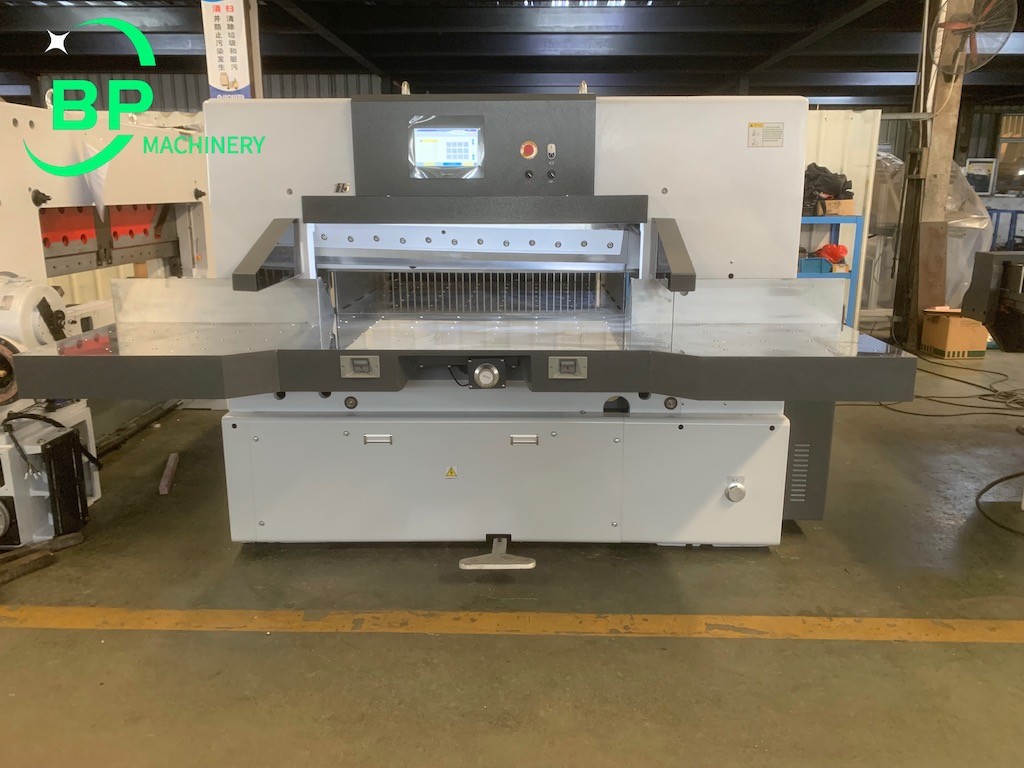

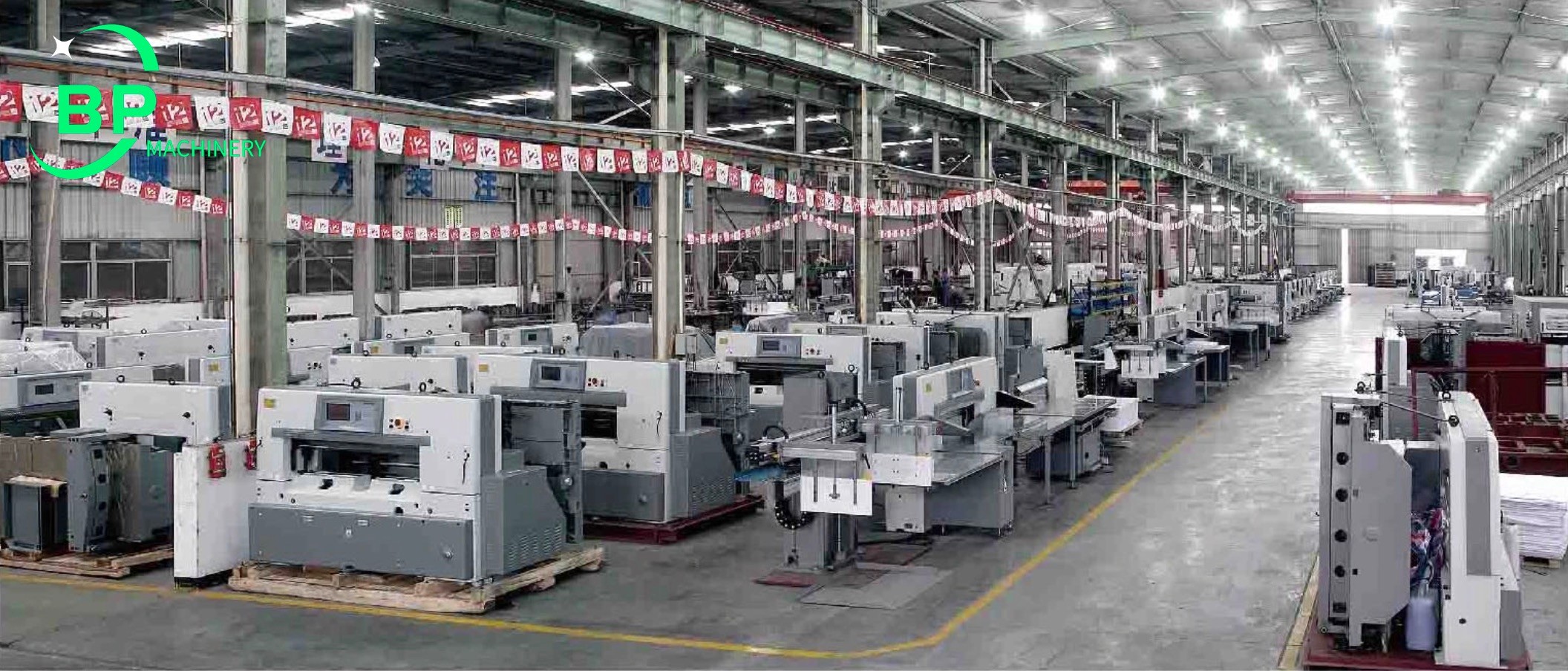

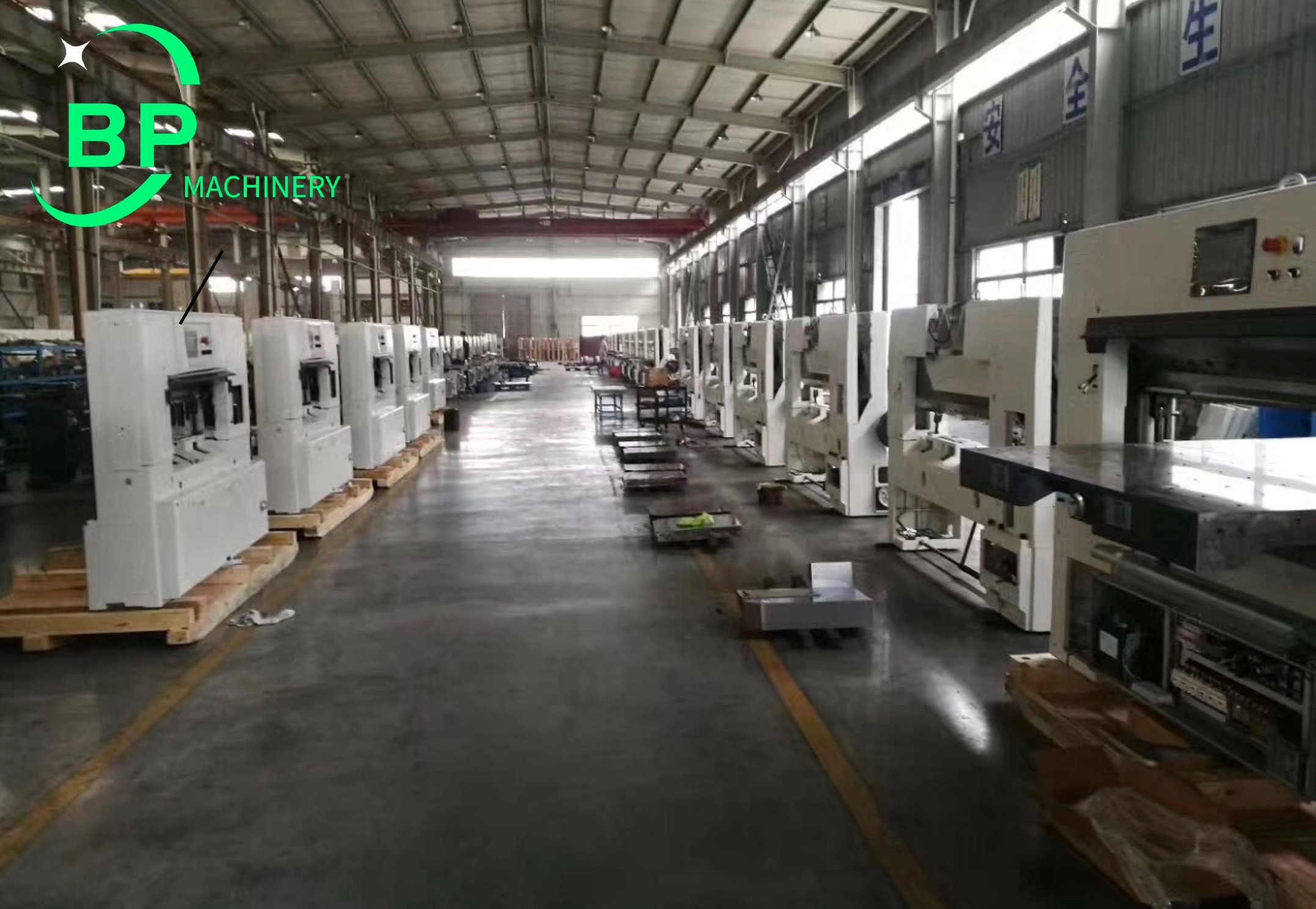

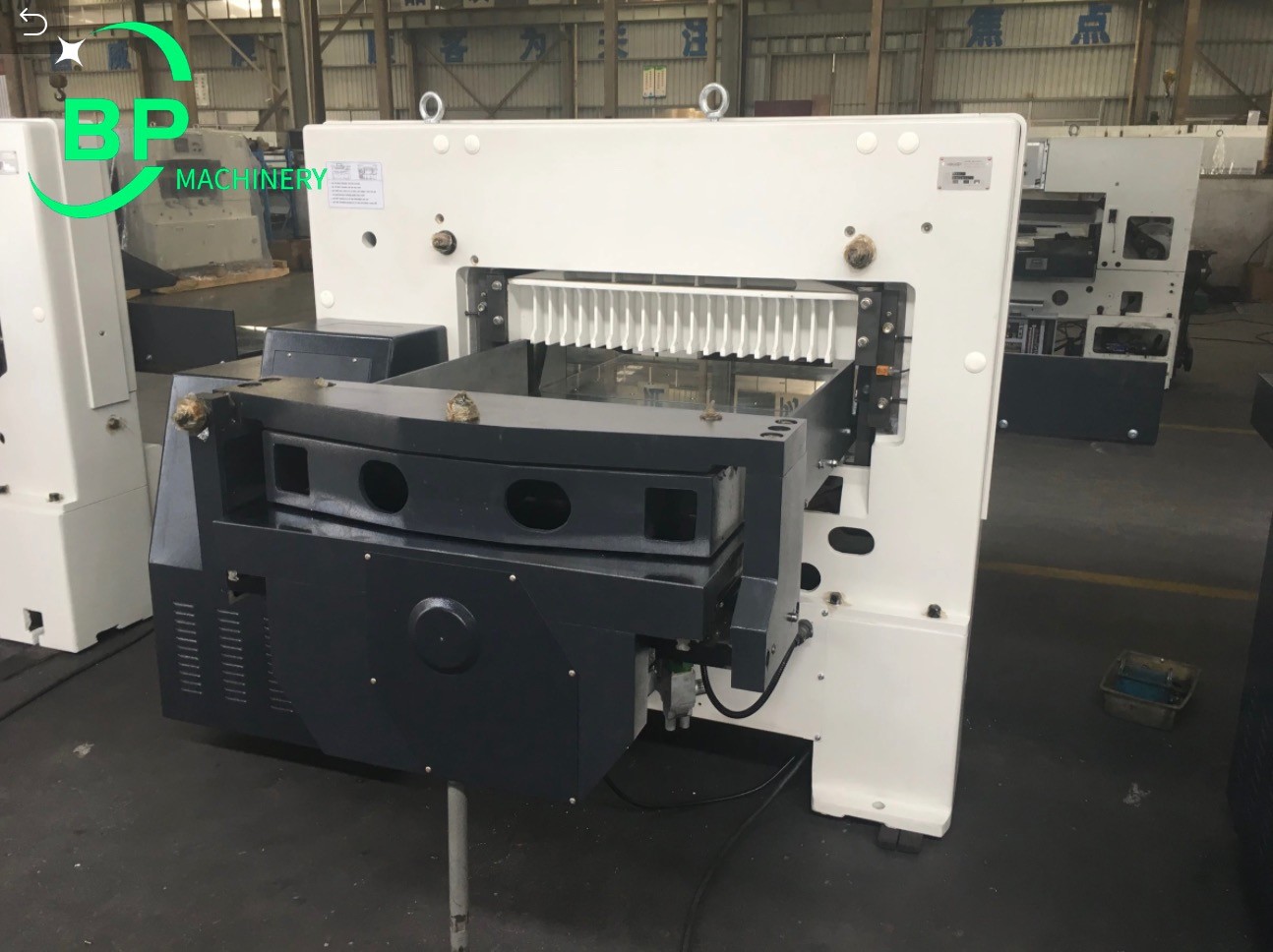

Our company machines assembling pictures
